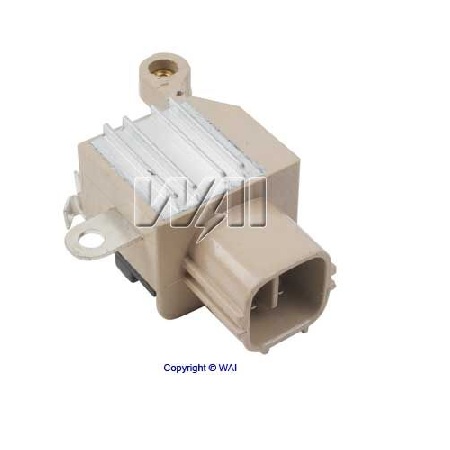

Description

For :
• Denso IR/IF Alternators

Features:
• 100% New Transpo
• Standard Lamp – No Output
• Field, Lamp Short Circuit Protection
• Full range LRC
• RLO voltage control
• Temperature Coefficient

Used On:
Lexus (2007-2012) , Lexus – Europe (2005-2015) , Toyota (2006-2008) , Toyota – China (2008-2009) , Toyota – Europe (2005-2015)

Replaces:
Denso 126600-3020, 126600-3220, 126600-3320, 126600-3800, 3020, 3220, Original Reference Number 1123-046RS, GC1M3320, GC2M3020, GC2M3220

Unit Nos:
Denso 104210-2080, 104210-2090, 104210-2091, 104210-2092, 104210-2320, 104210-2520, 104210-4520, 104210-4521, 104210-4522, 104210-4523, 104210-4590, 104210-4591, 104210-4592, 104210-4740, 104210-4750, 104210-4760, 104210-4790, 104210-4791, 104210-4792, 104210-4793, 104210-4794, 104210-4795, 104210-6130, 104210-6131, 104210-8350, 104210-9240, 104210-9250, 104210-9290, 9664219-208, DAN1018, DAN1025, TG104210-9240; Lexus 27060-38040, 27060-38041, 27060-38070; Marelli 063377534010; Toyota 27060-0G010, 27060-0G011, 27060-0G021, 27060-0N040, 27060-0N050, 27060-0Q060, 27060-0Y010, 27060-0Y030, 27060-28300, 27060-28301, 27060-28301-84, 27060-2830184, 27060-28330, 27060-31090, 27060-31091, 27060-31091, 27060-31091-84, 27060-31091-84, 27060-31100, 27060-31101, 27060-31102, 27060-33100, 27060-47050, 270600Y050

Lester Nos:
11201, 11322, 11323, 11328, 20226, 20494, 20538, 20714, 21418, 23947, 24104, 24105
